Mixing and metering system

Gear pump system G-Mix

Mixing and metering system

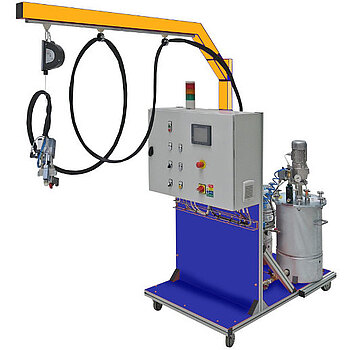

gear pump metering system G-MIX

Series G-MIX metering systems can are customized systems with gear pumps. G-Mix is based on a modular desighn which is available in a mobile version as well as for integration in manual or automated workstations

Material supply is handled by pressure tanks for fluids and piston pumps for pastes.


  • Electrical agitation
  • Transfer pumps for filling pressure tanks
  • Monitoring by volume counters
  • Profinet interface
  • Electrical heating
  • Stainless steel
  • Hardened pumps
  • Etc.

technical data:

output rate: 0,5 ml/min to 5 l/min (depending on viscosity & mixing ratio, higher output rates upon request)
mixing ratio: 100:100 to 100:2
mixer: static mixer, static-dynamic mixer or dynamic mixing system
viscosity: 10 mPas to 1.500.000 mPas
materials: without filler, with filler, abrasive
material supply: up to 50.000 mPas by pressure tank, up to 1.500.000 mPas by drum pumps
